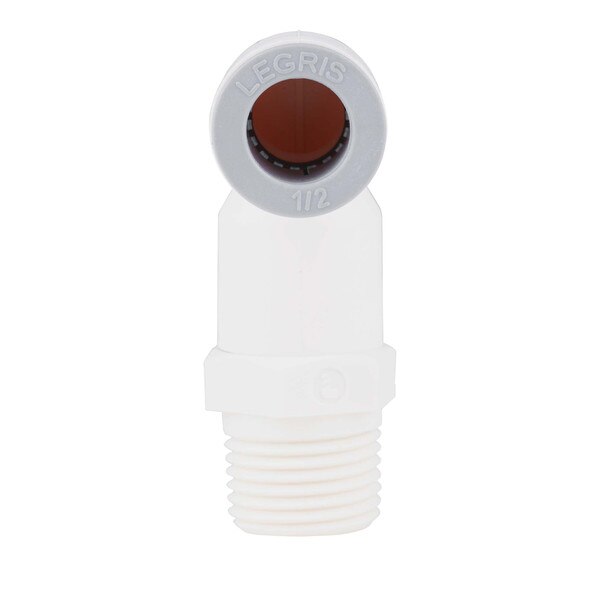

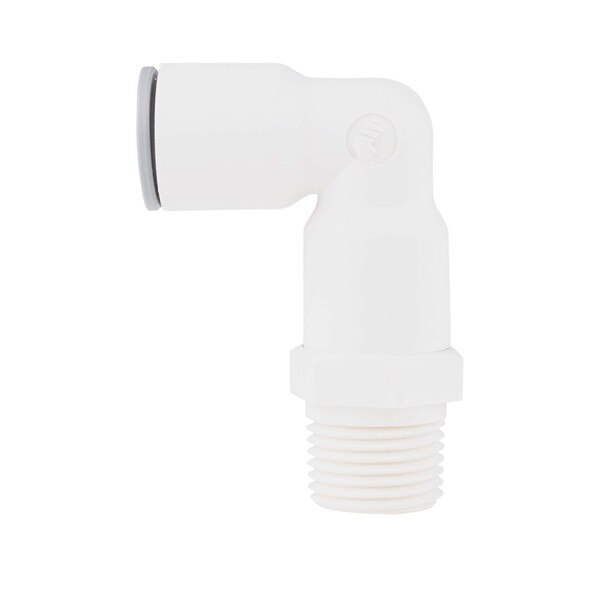

Parker Liquifit 1/2" MNPT x 1/2" Quick Connect Elbow Swivel

The Parker Liquifit 1/2" MNPT x 1/2" Quick Connect Elbow Swivel (MPN: 6509 62 22WP2) is an innovative 90-degree fitting designed for a wide array of water applications, particularly in commercial settings like car washes. This white swivel elbow offers a groundbreaking alternative to traditional fittings, boasting a unique push-to-connect design that ensures no fluid contamination and guarantees environmental protection.

Constructed primarily from durable polypropylene and bio-based polyamide material, along with an EPDM D-Seal and a stainless steel gripping ring, this elbow is built for reliability. It operates efficiently within a temperature range of -14°F to 200°F and can withstand a maximum pressure of 230 PSI. The full-flow, non-pulsating design means no locking clip is required, simplifying installation while maintaining a secure connection.

This versatile fitting is widely utilized in various car wash applications, including Spot Free Rinse Arches, Presoak Arches, and Rain Bars, due to its ability to provide clean and efficient fluid transfer. Beyond car washes, its compliance with NSF 61 (for drinking water), NSF 51 (for food), FDA (for food and beverage), and ROHS standards makes it suitable for potable liquids, RO systems, drinking dispensers, water filtration systems, and misting systems.
